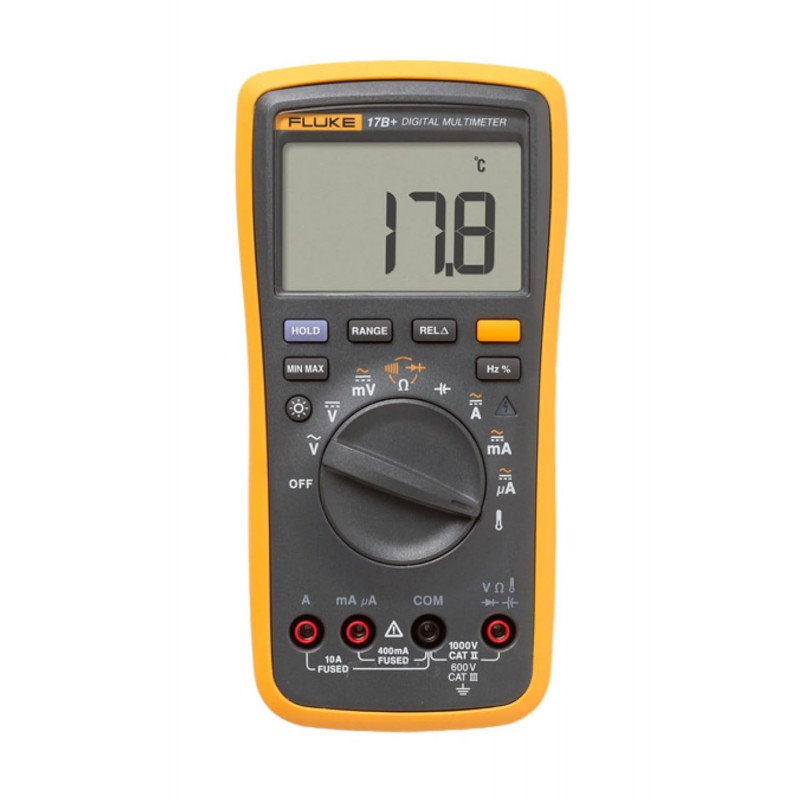

FLUKE 17B+ Digital Multimeter, for Electrical Applications, Measures AC/DC Voltage 1000V, Current Measurements to 10A, Resistance, Continuity, Diode, Capacitance, Frequency, and Temperature Testing

The Fluke 17B+ Digital Multimeter is a versatile and reliable tool designed for professionals and enthusiasts to accurately measure a wide range of electrical parameters. Its robust construction and comprehensive features make it suitable for various electrical applications, including residential, commercial, and industrial settings.

Key Features

• AC/DC Voltage Measurement: Measures up to 1000 V, accommodating high-voltage applications.

• AC/DC Current Measurement: Handles currents up to 10 A, suitable for various electrical components and systems.

• Resistance Measurement: Measures resistance up to 40 MΩ, aiding in assessing circuit integrity.

• Capacitance Measurement: Capable of measuring up to 1000 μF, useful for evaluating capacitors in electronic circuits.

• Frequency and Duty Cycle: Measures frequencies up to 100 kHz and duty cycles from 1% to 99%, essential for analyzing signal characteristics.

• Temperature Measurement: Includes a Type-K thermocouple probe to measure temperatures ranging from -55 °C to 400 °C, facilitating HVAC and other thermal assessments.

• Diode Test and Continuity: Features functions for testing diodes and verifying circuit continuity, aiding in troubleshooting.

• Data Hold Function: Allows users to freeze the current reading on the display for convenient recording.

• Large Backlit Display: Equipped with a bright white backlight, ensuring clear visibility in various lighting conditions.

• Safety Compliance: Rated CAT III 600 V, adhering to international safety standards for electrical testing tools.

Specifications

• AC Voltage:

  • Range: 4.000 V to 1000 V
  • Accuracy: ±1.0% + 3 digits

• DC Voltage:

  • Range: 4.000 V to 1000 V
  • Accuracy: ±0.5% + 3 digits

• AC Current:

  • Range: 400.0 μA to 10.00 A
  • Accuracy: ±1.5% + 3 digits

• DC Current:

  • Range: 400.0 μA to 10.00 A
  • Accuracy: ±1.5% + 3 digits

• Resistance:

  • Range: 400.0 Ω to 40.00 MΩ
  • Accuracy: ±0.5% + 2 digits

• Capacitance:

  • Range: 40.00 nF to 1000 μF
  • Accuracy: ±2% + 5 digits

• Frequency:

  • Range: 50.00 Hz to 100.0 kHz
  • Accuracy: ±0.1% + 3 digits

• Temperature:

  • Range: -55 °C to 400 °C
  • Accuracy: ±2% ±1 °C

• Dimensions: 183 x 91 x 49.5 mm

• Weight: Approximately 455 g

• Display: 4000 counts, updates 3 times per second

• Battery Life: Minimum of 500 hours

Included Accessories

• Fluke TL75 Test Leads

• Type-K Thermocouple Temperature Probe

• Two AA Batteries

• User Manual

For more detailed information, please refer to the official product page: Fluke 17B+ Digital Multimeter
