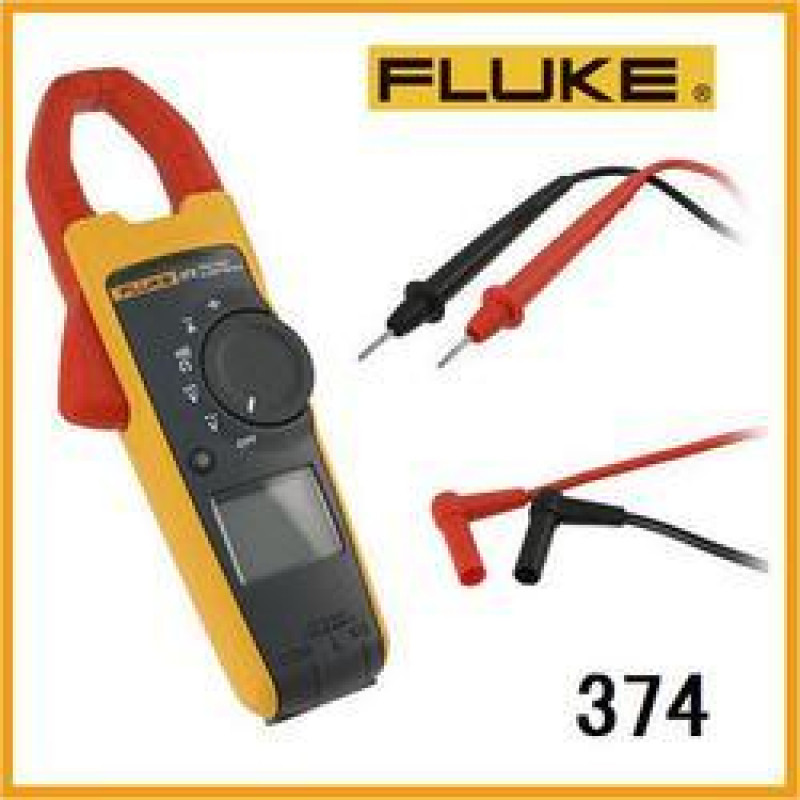

Fluke 374 True RMS AC/DC 600A Clamp Meter Measure upto 2500A AC

The Fluke 374 True RMS AC/DC Clamp Meter is a versatile and reliable tool designed for accurate electrical measurements in both commercial and industrial applications. With its True RMS technology, it ensures precise readings of non-linear signals, making it essential for professionals dealing with complex electrical systems.

Key Features

• AC/DC Current Measurement: Measures up to 600 A AC/DC with fixed jaw clamp; expandable to 2500 A AC with the optional iFlex® flexible current probe.

• AC/DC Voltage Measurement: Accurately measures up to 1000 V.

• True RMS Technology: Provides accurate readings for non-linear loads.

• Fluke Connect® Compatibility: Wirelessly transmit measurements to your smartphone for safer viewing and data sharing.

• Inrush Current Measurement: Captures motor starting current exactly as the circuit protection sees it.

• Safety Rating: CAT IV 600 V, CAT III 1000 V, ensuring high safety standards.

Specifications

• AC Current via Jaw:

  • Range: 600.0 A
  • Resolution: 0.1 A
  • Accuracy: ±2% ±5 digits (10 Hz to 100 Hz); ±2.5% ±5 digits (100 Hz to 500 Hz)

• AC Current via iFlex® (optional):

  • Range: 2500 A
  • Resolution: 0.1 A (≤ 600 A); 1 A (≤ 2500 A)
  • Accuracy: ±3% ±5 digits (5 Hz to 500 Hz)

• DC Current:

  • Range: 600.0 A
  • Resolution: 0.1 A
  • Accuracy: ±2% ±5 digits

• AC Voltage:

  • Range: 1000 V
  • Resolution: 0.1 V (≤ 600.0 V); 1 V (≤ 1000 V)
  • Accuracy: ±1.5% ±5 digits (20 Hz to 500 Hz)

• DC Voltage:

  • Range: 1000 V
  • Resolution: 0.1 V (≤ 600.0 V); 1 V (≤ 1000 V)
  • Accuracy: ±1% ±5 digits

• Resistance:

  • Range: 6000 Ω
  • Resolution: 0.1 Ω (≤ 600 Ω); 1 Ω (≤ 6000 Ω)
  • Accuracy: ±1% ±5 digits

• Capacitance:

  • Range: 1000 μF
  • Resolution: 0.1 μF (≤ 100 μF); 1 μF (≤ 1000 μF)
  • Accuracy: ±1% ±4 digits

• Frequency (via Jaw):

  • Range: 5.0 Hz to 500.0 Hz
  • Resolution: 0.1 Hz
  • Accuracy: ±0.5% ±5 digits

• Dimensions: 246 x 83 x 43 mm

• Weight: 388 g

• Jaw Opening: 34 mm

• Power Supply: 2 AA batteries

Included Accessories

• TL75 Test Leads

• Soft Carrying Case

• Two AA Alkaline Batteries (Installed)

• Coated Instruction Card

• Safety Information Sheet

For more detailed information, please refer to the official product page: Fluke 374 True RMS AC/DC Clamp Meter
