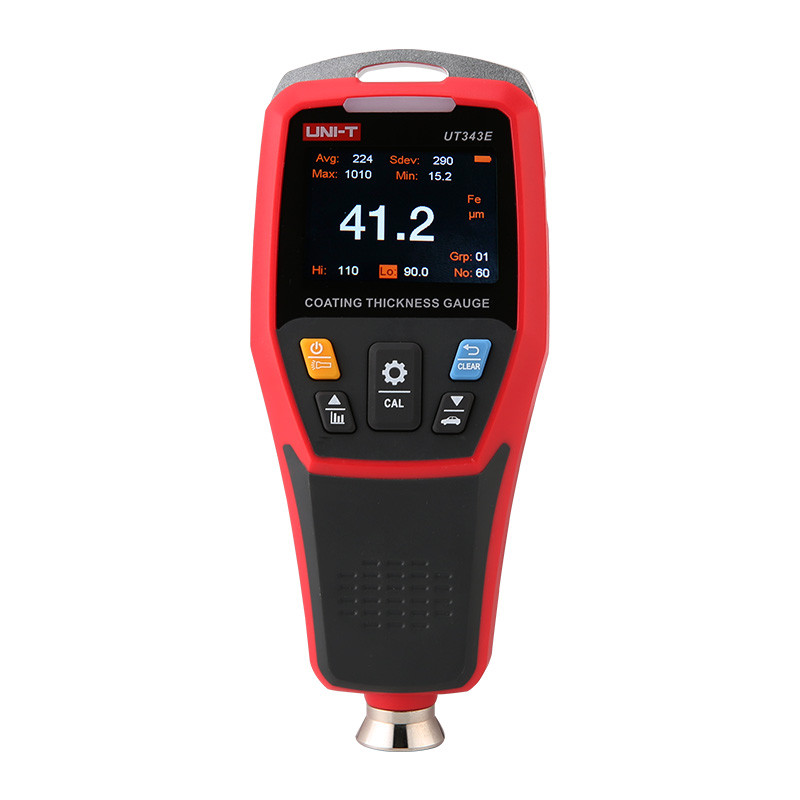

UNI-T UT343E Coating Thickness Gauge

UNI-T UT343E Coating Thickness Gauge

Specifications

• Measurement Range: 0~1250μm
• Measurement Accuracy: ±(3%+1μm)
• Resolution: 0.1μm (099.9μm), 1μm (1001250μm)
• Measuring Modes: Single & Continuous
• Measurement Principle:
  • Ferrous (F): Magnetic Induction
  • Non-Ferrous (N): Eddy Current
• Minimum Curvature Radius:
  • Convex: 1.5mm
  • Concave: 25mm
• Minimum Measurement Area: Ø7mm
• Minimum Substrate Thickness:
  • Ferrous (F): 0.5mm
  • Non-Ferrous (N): 0.3mm

Features

✔ Dual Measurement Modes: Ferrous (F) & Non-Ferrous (N)
✔ Automatic Substrate Recognition
✔ High Accuracy and Fast Response
✔ Data Storage: 199 Groups
✔ Statistics Display: AVG, MAX, MIN, S.DEV
✔ High-Contrast LCD with Backlight
✔ Low Battery Indicator
✔ Auto Power Off

Environmental Conditions

• Operating Temperature: 0℃~50℃
• Storage Temperature: -20℃~60℃
• Operating Humidity: ≤80% RH

General Characteristics

• Power Supply: 1.5V Battery (AAA) × 2
• Display: LCD with Backlight
• Product Color: Red & Grey
• Product Dimensions: 107mm × 70mm × 24mm
• Weight: Approx. 90g (without battery)

Standard Accessories

• Calibration Foils
• Zero Calibration Substrate (F & N)
• Carrying Case
• User Manual

Packaging Details

• Standard Quantity per Carton: 40 pcs
• Carton Dimensions: TBD
