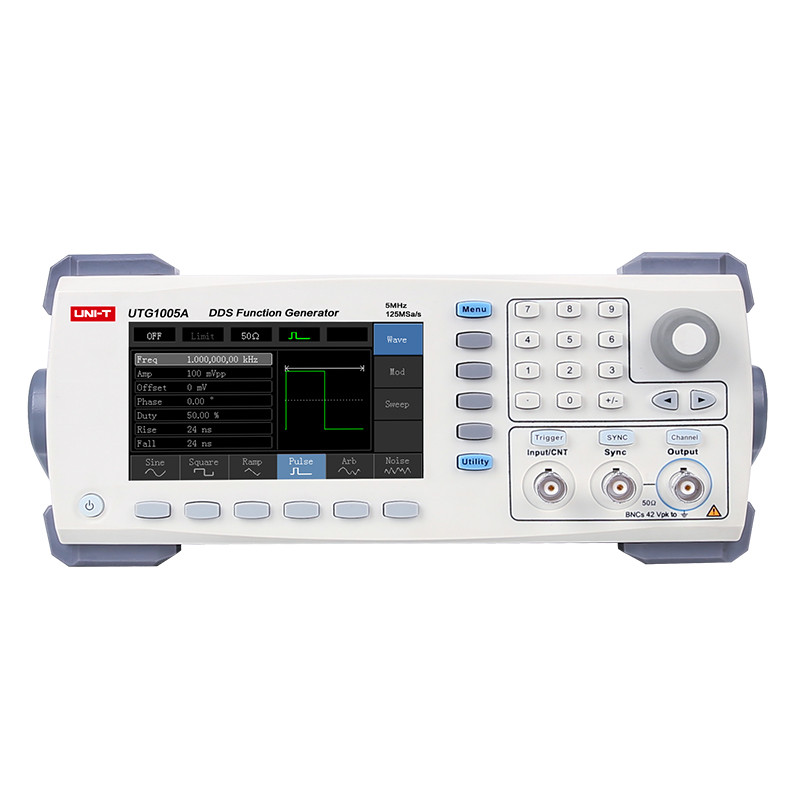

UNI-T 5MHz Function / Arbitrary Waveform Generator, Frequency Range: 1μHz~5MHz, UTG1005A
৳25,000
UNI-T UTG1005A 5MHz ফাংশন / আরবিট্রারি ওয়েভফর্ম জেনারেটর একটি শক্তিশালী এবং সঠিক ডিভাইস যা বিভিন্ন ধরনের সিগন্যাল জেনারেট করতে ব্যবহৃত হয়। এর ফ্রিকোয়েন্সি রেঞ্জ 1μHz থেকে 5MHz পর্যন্ত, যা এটি বিভিন্ন টেস্ট এবং পরীক্ষার জন্য উপযুক্ত করে তোলে। এটি সাইন, ট্রায়াঙ্গুলার, সীজিটাল এবং পিলসনের মত বিভিন্ন ধরনের ওয়েভফর্ম তৈরি করতে সক্ষম। 128×64 পিক্সেল LCD ডিসপ্লে এবং সহজ অপারেশন সহ, এটি গবেষণা, উন্নয়ন এবং বৈদ্যুতিক পরীক্ষাগুলির জন্য আদর্শ। কমপ্যাক্ট ডিজাইন এবং শক্তিশালী কার্যক্ষমতা এটিকে ব্যবহারকারী-বান্ধব এবং বহনযোগ্য করে তোলে।
- Brand: UNI-T
- Product Code: UTG1005A
- Availability: In Stock
UTG1005A Function/Arbitrary Waveform Generator
UTG1005A function/arbitrary waveform generator adopts direct digital synthesis technology to produce accurate and stable waveform output with 1Hz resolution. Modulations like AM, PM, FM, ASK, FSK etc. with internal or external source, linear and logarithmic sweeps and USB interface are available. The panel is ergonomically constructed for simple operation.
Main Features
1. 5MHz/10MHz sine wave output, full band with 1Hz resolution
2. 5MHz pulse waveform, rise and fall time adjustable
3. 125MSa/s sampling rate and 14 bit vertical resolution
4. Standard performance of double channel
5. 16 nonvolatile waveform memory
6. Modulations: AM, FM, PM, ASK, FSK, PWM
7. 4.3 inch high resolution TFT color LCD display
8. Standard interface: USB Device
Accessories
Power cord, USB cable, BNC cable (1 meter), PC software CD
| Specifications | |
| Model | MO00640313 |
| Channel | 1 |
| Channel bandwidth | 5MHz |
| Sampling rate | 125MS/s |
| Vertical resolution | 14 bits |
| Waveforms | Sine, square, triangle, pulse, ramp, noise, arbitrary (16 sets) |
| Sweeps | Linear, logarithmic and external |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM |
| Output characteristics | |
| Output impedance | 50Ω/ high resistance |
| Amplitude range | 1mVpp~10Vpp (50Ω) |
| 2mVpp~20Vpp (high resistance) | |
| Accuracy (1kHz sine wave) | 1%+ 2mV of amplitude setting value |
| DC offset range | -5Vpp~5Vpp (50Ω) (AC+DC) |
| -10Vpp~10Vpp (high resistance) (AC+DC) | |
| Offset accuracy | +1% of offset setting value+ 0.5% + 2mV of amplitude setting value |
| Amplitude resolution | 1mV |
| Amplitude flatness | ＜100kHz 0.1dB |
| 100kHz~10MHz 0.2dB | |
| Frequency counter | |
| Input level | Compatible with TTL |
| Input frequency | 1Hz~100MHz |
| Frequency resolution | 6 bit / second |
| Coupling | DC |
| Connector on back panel | |
| Interface | |
| Standard | USB Device |
| Display | |
| Screen | 4.3 inches TFT, LCD |
| Resolution | WVGA (480×272) |
| Languages | Chinese (by default) and English |
| Power supply | |
| Power | 100V~240VACrms, 50Hz/60Hz |
| Consumption | Less than 25W |
| Fuse | 2A, T class, 250V |
| Environment | |
| Temperature range | Operating: 10℃~+40℃ |
| Others: -20℃~+60℃ | |
| Cooling | By fan |
| Humidity range | Less than 35℃: ≤90%RH |
| 35℃~40℃: ≤60%RH | |
| Altitude | Operating: less than 2,000m |
| Others: less than 15,000m | |
| General characteristics | |
| Product size (W×H×D) | 265mm×110mm×320mm |
| Product net weight | 3.1kg |
| Standard accessories | Power cord, USB cable, BNC cable (1m), PC software CD |
| Standard individual packing | English manual |
| Standard quantity per carton | 2pcs |
| Standard carton size | 380mm×330mm×320mm |
| Standard carton gross weight | 8.6kg |
