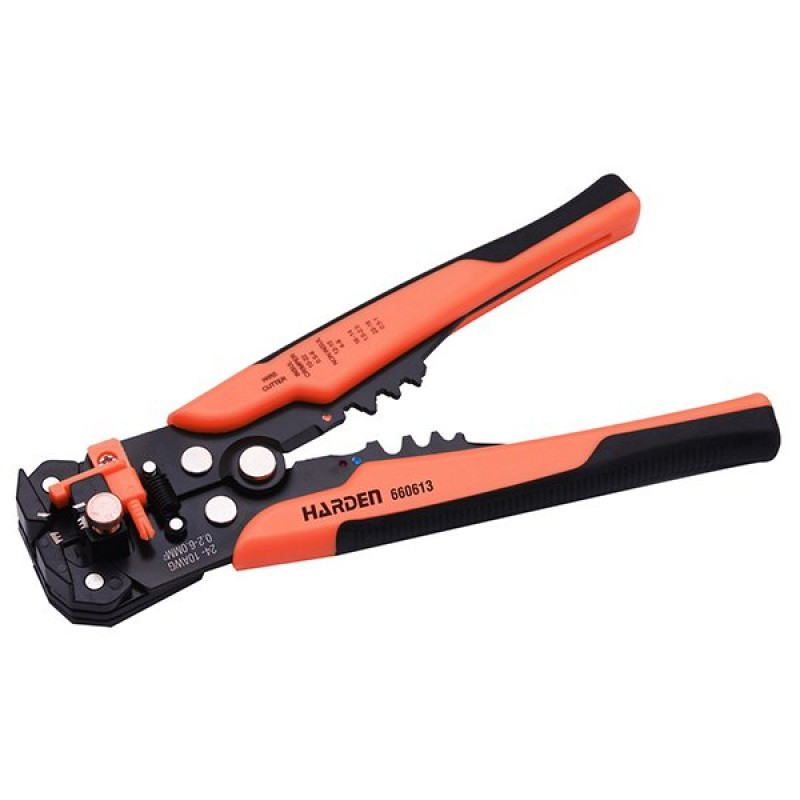

Harden 8" Automatic Wire Stripper Plier Multi-Function, Stripping Crimping and Cutting Tool Model: 660613

The Harden 8" Automatic Wire Stripper Plier Multi-Function Tool (Model: 660613) is designed to efficiently handle tasks such as stripping, crimping, and cutting wires, making it an essential tool for both professionals and DIY enthusiasts.

Key Features:

• Multi-Functionality: Capable of stripping sheathed core wires, cables, flat lines, network cables, and multi-strand sheathed wires. Additionally, it can cut various types of wires and crimp both insulated and non-insulated terminals.

• Adjustable Stripping Length: Features a stripping length adjustment module to ensure consistent stripping lengths, enhancing precision in repetitive tasks.

• Stripping Capacity: Suitable for wires ranging from 24 to 10 AWG (0.2 to 6.0 mm²), accommodating a wide variety of wire sizes.

• Crimping Function: Equipped to crimp insulated terminals (10-22 AWG or 0.5-6 mm²) and non-insulated terminals (12-10 AWG or 4-6 mm²; 16-14 AWG or 1.5-2.5 mm²; 22-18 AWG or 0.5-1 mm²), offering versatility for different terminal types.

• Material and Durability: Constructed with a zinc-alloy body and Chromium-Molybdenum (Cr-Mo) steel cutting blade, ensuring durability and long-lasting performance.

• Ergonomic Design: The handle features a non-slip design, providing a comfortable and secure grip during use.

• Adjustable Stripping Force: Includes an adjustment button to fine-tune the stripping strength, preventing damage to wires and ensuring clean stripping results.

Specifications:

• Size: 8 inches (210 mm)

• Dimensions:

  • Length 1: 210 mm
  • Length 2: 160 mm
  • Length 3: 60 mm
  • Height 1: 50 mm
  • Height 2: 105 mm

This tool's combination of functionality and ergonomic design makes it a valuable addition to any toolkit, streamlining tasks that involve wire preparation and termination.
