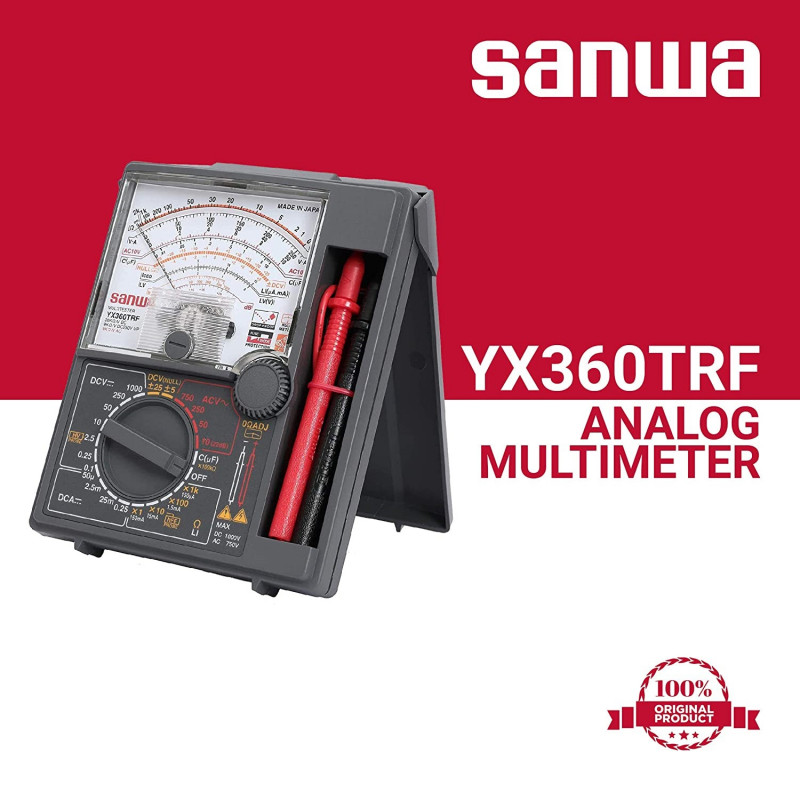

SANWA YX360TRF Analog Multitester Multimeter

The Sanwa YX360TRF is a robust analog multimeter designed for precise measurement of various electrical parameters in low-voltage circuits. Its durable construction and comprehensive features make it suitable for both professionals and hobbyists.

Key Features

• Drop Shock Proof Meter: Equipped with a taut-band meter movement, the YX360TRF is designed to withstand accidental drops, ensuring longevity and reliability.

• Null (Zero Center) Meter: Features a zero-center meter function with ±5V and ±25V ranges for DC voltage measurements, facilitating easy detection of voltage deviations.

• High Resistance Measurement: Capable of measuring resistance up to 200MΩ with low voltage, making it ideal for testing high-resistance components.

• Protective Body Cover: Comes with a solid, protective cover that not only safeguards the device but also doubles as a tilt stand for hands-free operation.

• Capacitance and dB Measurement: Includes functions to measure capacitance up to 10μF and signal power in decibels (dB), enhancing its versatility.

Specifications

• DC Voltage (DCV):

  • Ranges: 0.1V (20kΩ/V), 0.25V / 2.5V / 10V / 50V (20kΩ/V), 250V / 1000V (9kΩ/V)
  • Accuracy: ±3% of full scale (0.1V to 50V), ±5% of full scale (250V to 1000V)

• DC Voltage (NULL):

  • Ranges: ±5V / ±25V (40kΩ/V)
  • Accuracy: ±5% of full scale

• AC Voltage (ACV):

  • Ranges: 10V / 50V / 250V / 750V (9kΩ/V)
  • Accuracy: ±4% of full scale

• DC Current (DCA):

  • Ranges: 50μA / 2.5mA / 25mA / 0.25A
  • Accuracy: ±3% of full scale

• Resistance:

  • Ranges: 2kΩ (×1), 20kΩ (×10), 200kΩ (×100), 2MΩ (×1k), 200MΩ (×100k)
  • Accuracy: ±3% of arc (up to 2MΩ), ±5% of arc (200MΩ)

• Capacitance:

  • Range: 10μF
  • Note: Provides approximate values

• dB Measurement:

  • Range: -10dB to +62dB (for 10VAC)
  • Note: Provides approximate values

• Load Current (LI):

  • Ranges: 0-150mA / 15mA / 1.5mA / 150μA / 1.5μA
  • Note: Provides approximate values

• DC High Voltage:

  • Range: Up to 25kV (requires optional HV-10T probe)

• Transistor hFE Measurement:

  • Range: Up to 1000 at ×10 range (requires optional HFE-6T probe)

• Power Supply: Two 1.5V batteries (R6 or UM-3)

• Fuse Protection: 5.2mm × 20mm fuse (250V / 0.5A)

• Dimensions: 159.5mm (H) × 129mm (W) × 41.5mm (D)

• Weight: Approximately 320g
