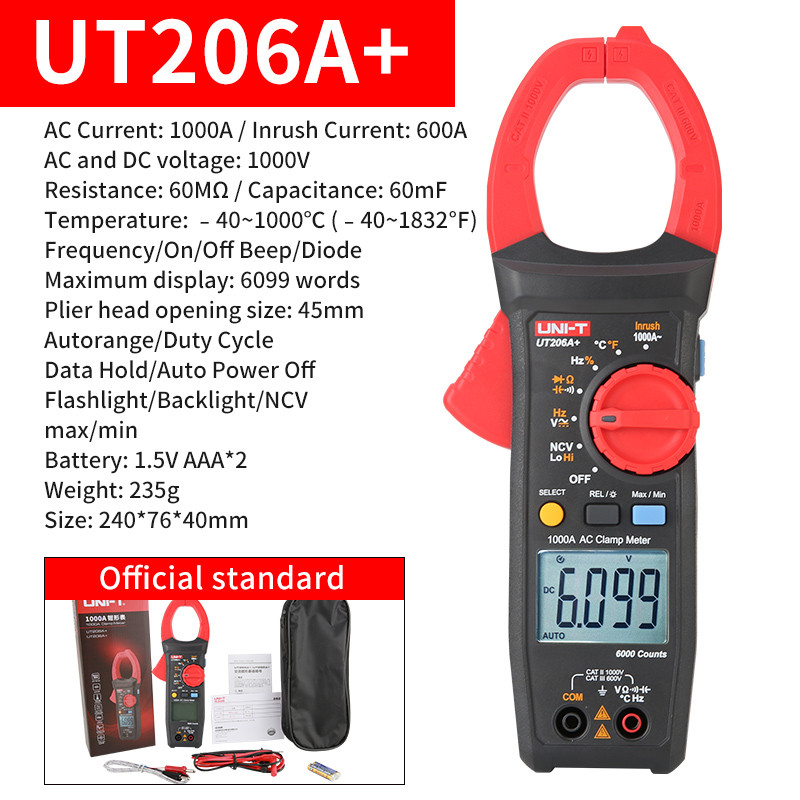

UNI-T UT206A+ Clamp Meters 1000A AC Clamp on Meter

UNI-T UT206A+ 1000A AC Clamp Meter

The UNI-T UT206A+ is a professional-grade 1000A AC clamp meter designed for accurate current, voltage, resistance, and continuity measurements in electrical systems. With True RMS technology, a large LCD display, and essential safety features, this clamp meter is ideal for electricians, maintenance engineers, and technicians working in industrial, commercial, and residential environments.

Key Features:

✅ 1000A AC Current Measurement – High-capacity AC current testing for industrial and electrical systems.
✅ True RMS Technology – Ensures precise measurements even for non-linear AC signals.
✅ Voltage Measurement – Supports AC/DC voltage up to 600V.
✅ Resistance Measurement – Measures resistance up to 60MΩ, with a continuity buzzer for circuit testing.
✅ Capacitance Testing – Accurately measures capacitance from 10nF to 60mF.
✅ Diode Testing Function – Allows quick testing of diode functionality.
✅ NCV (Non-Contact Voltage Detection) – Detects live voltage safely without direct contact.
✅ Data Hold & Backlit Display – Locks readings and ensures visibility in low-light conditions.
✅ Auto Power Off – Conserves battery life by shutting down after a period of inactivity.
✅ Durable & Ergonomic Design – Built with high-quality materials for long-lasting performance.

Technical Specifications:

• Current Measurement Range: 0 – 1000A AC
• Voltage Measurement Range: 0 – 600V AC/DC
• Resistance Measurement Range: 0 – 60MΩ
• Capacitance Measurement: 10nF – 60mF
• Frequency Measurement: 10Hz – 10MHz
• True RMS: Yes
• Diode Testing: Yes
• NCV Detection: Yes
• Display: LCD with backlight
• Data Hold Function: Yes
• Auto Power Off: Yes
• Jaw Opening Size: 45mm
• Power Supply: 9V battery
• Safety Rating: CAT III 600V, CAT IV 300V
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Dimensions: 246mm × 83mm × 45mm
• Weight: 400g

General Characteristics:

Reliable AC Current Measurement – Designed for professionals needing accurate high-current testing.
True RMS Precision – Ensures accurate readings, even in complex electrical systems.
User-Friendly Interface – Large, backlit LCD display with intuitive controls.
Versatile Functions – Ideal for testing voltage, resistance, continuity, capacitance, and frequency.
Enhanced Safety Features – Includes NCV detection, diode testing, and overload protection.
Durable & Compact – Designed for long-term professional use in challenging environments.

Package Includes:

✔ 1 x UNI-T UT206A+ 1000A AC Clamp Meter
✔ 1 x Set of Test Leads
✔ 1 x 9V Battery
✔ 1 x User Manual

The UNI-T UT206A+ is an excellent choice for professionals working in electrical maintenance, power distribution, HVAC, and industrial automation.

Order now and get precise and safe electrical measurements with the UNI-T UT206A+
