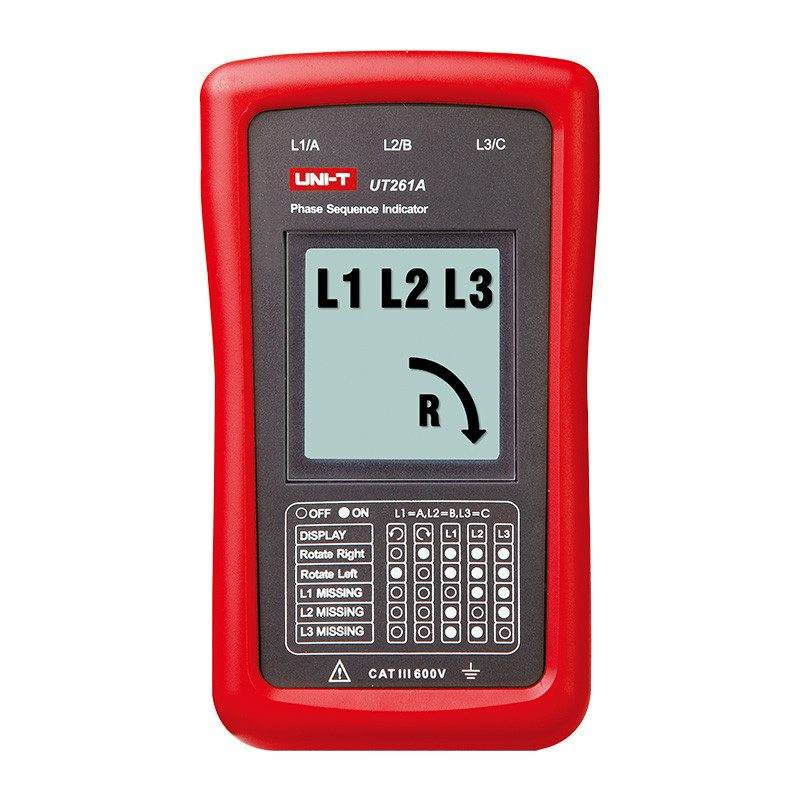

UNI-T UT261A Phase Sequence and Motor Rotation Indicator

The UNI-T UT261A is a high-performance phase sequence and motor rotation indicator, designed to provide reliable and accurate detection of phase sequence and motor rotation direction in electrical circuits. Ideal for electricians, engineers, and maintenance technicians, the UT261A ensures that motors and electrical systems operate correctly, preventing potential damage caused by incorrect wiring or phase sequence errors. This tool is crucial for safe commissioning and troubleshooting in various industrial, commercial, and residential electrical installations.

Key Features:

✅ Phase Sequence Detection – Accurately detects the phase sequence (ABC or CBA) to ensure proper rotation direction for motors.
✅ Motor Rotation Direction Check – Identifies whether the motor is rotating in the correct direction (clockwise or counterclockwise) to avoid potential damage.
✅ Visual & Audible Indicators – Provides both LED indicators and audible sound to clearly show the phase sequence and motor rotation status.
✅ Wide Voltage Range – Supports 110V to 600V AC for compatibility with a variety of electrical systems.
✅ Compact and Portable – Lightweight and easy to carry, making it ideal for use on construction sites, maintenance tasks, and fieldwork.
✅ User-Friendly Design – Simple operation with clear visual and audible signals, making it easy for professionals to perform checks quickly.
✅ No Need for External Power – Operates directly from the live electrical circuit without requiring an external power source.

Technical Specifications:

• Phase Sequence Detection Range: 50 Hz to 400 Hz
• Motor Rotation Direction Detection: Yes (clockwise or counterclockwise)
• Display: LED indicators for phase sequence and rotation direction
• Audio Indicators: Beep for correct/incorrect phase sequence or motor rotation
• Operating Voltage: 110V to 600V AC
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Dimensions: 135mm × 60mm × 30mm
• Weight: 120g

General Characteristics:

Phase Sequence Monitoring – Verifies correct phase sequence for safe and efficient operation of motors and electrical systems.
Motor Rotation Confirmation – Ensures motors rotate in the correct direction to avoid electrical faults and motor damage.
Visual & Audible Feedback – Quick and clear feedback with LED indicators and sound alerts for ease of use.
Lightweight & Portable – Ergonomic and easy to carry for professionals working in the field.
Versatile Voltage Range – Compatible with a wide range of electrical systems for diverse applications.

Package Includes:

✔ 1 x UNI-T UT261A Phase Sequence and Motor Rotation Indicator
✔ 1 x Set of Test Leads
✔ 1 x User Manual

The UNI-T UT261A is an essential tool for ensuring proper motor rotation and phase sequence in electrical circuits. Whether you’re conducting routine maintenance, troubleshooting, or installing electrical systems, the UT261A guarantees accurate and reliable results, helping you avoid damage and ensuring smooth operations.

Order now and optimize your electrical testing with the UNI-T UT261A for accurate phase sequence and motor rotation detection!
