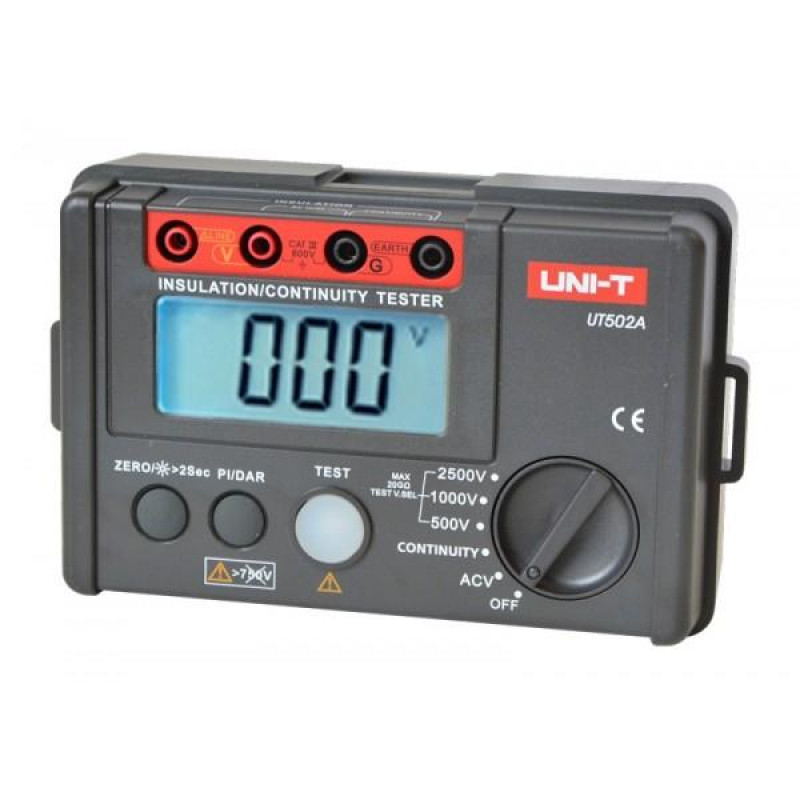

Uni-T UT502A Digital Megger Meter Insulation Tester 2500V

UNI-T UT502A Digital Megger Meter Insulation Tester (2500V)

The UNI-T UT502A is a professional-grade digital insulation tester (Megger meter) designed for testing insulation resistance in electrical systems, transformers, cables, and industrial equipment. With a high test voltage of up to 2500V and a wide insulation resistance range of up to 1000GΩ, this device ensures safe and accurate insulation testing in demanding environments. Ideal for electricians, engineers, and maintenance professionals, the UT502A helps diagnose faults, prevent electrical failures, and ensure compliance with safety standards.

Key Features:

✅ High Test Voltage up to 2500V – Suitable for industrial insulation testing.
✅ Wide Insulation Resistance Measurement – Ranges from 0.5MΩ to 1000GΩ for comprehensive testing.
✅ Auto & Manual Ranging – Allows flexibility in measurement for convenience and precision.
✅ Large LCD Display with Backlight – Ensures clear readings in dark environments.
✅ Data Hold Function – Freezes current readings for easy reference.
✅ Auto Discharge Function – Automatically discharges residual voltage after testing for safety.
✅ Overload Protection – Protects the device and user from potential electrical hazards.
✅ Low Battery Indication – Alerts when battery power is running low.
✅ Portable & Durable Design – Ergonomic and robust design for field and workshop use.

Technical Specifications:

• Insulation Resistance Measurement Range:
  • 500V: 0.5MΩ to 200GΩ
  • 1000V: 0.5MΩ to 500GΩ
  • 2500V: 0.5MΩ to 1000GΩ
• Test Voltage Options: 500V / 1000V / 2500V
• Accuracy: ±(5% + 5 digits)
• Short Circuit Current: >1mA
• Auto & Manual Ranging: Yes
• Data Hold Function: Yes
• Overload Protection: Yes
• Auto Discharge Function: Yes
• Display: Large LCD with backlight
• Power Supply: 8 x 1.5V AA batteries (included)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Dimensions: 202mm × 155mm × 94mm
• Weight: 1.5kg (including battery)

General Characteristics:

High Voltage Testing Capability – Ideal for high-insulation resistance testing in industrial environments.
Auto Discharge for Safety – Prevents electrical shock by safely discharging stored voltage after testing.
Versatile Application – Suitable for power plants, telecommunications, manufacturing, and maintenance industries.
Robust & Durable Design – Built for long-lasting performance in tough conditions.
Battery-Powered for Portability – Convenient operation in various locations without the need for an external power source.

Package Includes:

✔ 1 x UNI-T UT502A Digital Insulation Tester
✔ 1 x Set of Test Leads
✔ 1 x Carrying Case
✔ 8 x 1.5V AA Batteries
✔ 1 x User Manual

The UNI-T UT502A Digital Megger Meter is a reliable, high-performance insulation tester that provides precise and safe measurements for industrial applications. Whether testing high-voltage electrical equipment or verifying insulation integrity, this essential tool ensures efficiency and accuracy.

Order now and ensure your electrical systems meet the highest safety standards with professional-grade insulation testing!
